§ 01Four kinds
Every gate starts with a brief. What does your drive ask for?
01
Swing Gates
The classic choice for traditional homes with room to open inward or outward.
Leaf configurationTwin-leaf or single
OpeningUp to 5m clear
Motor optionsUnderground ram or above-ground
When it fits
· Traditional or period homes
· Brick or stone pier setting
· Generous driveway depth
02
Sliding Gates
Where swing clearance is limited, a sliding gate opens in its own footprint.
Leaf typeCantilever or tracked
OpeningUp to 8m clear
Motor optionsGearmotor or rack drive
When it fits
· Restricted depth behind gate
· Level or slightly sloped drive
· High-traffic use
03

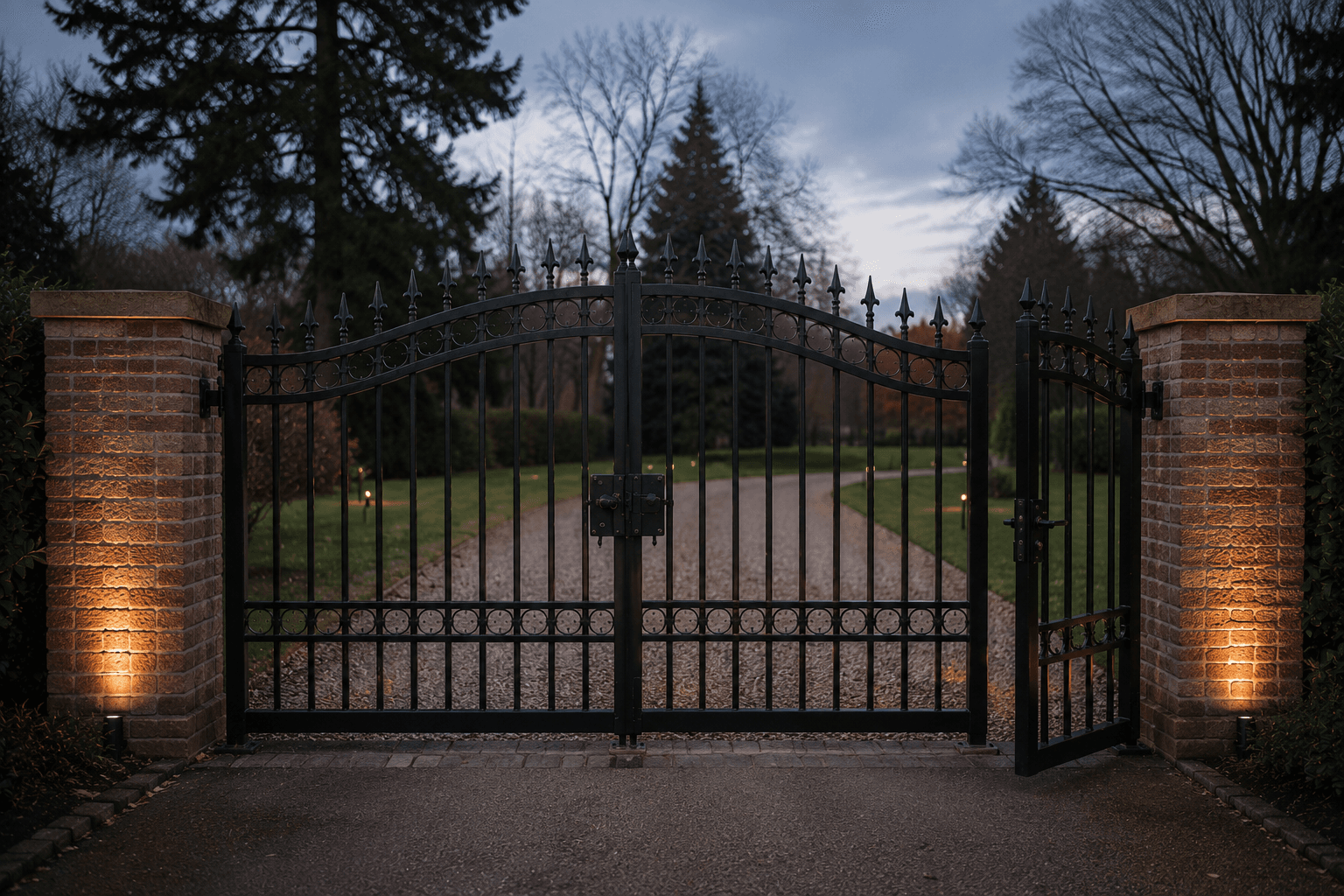

Pedestrian Gates
A smaller leaf within or beside the main gate, allowing entry on foot without opening fully.
Width600–900mm clear
OperationManual or automated
FrameMatches main gate
When it fits
· High foot-traffic alongside vehicle use
· Separate pedestrian access
· Dog-friendly containment
04
Estate Gates
Large installations with feature piers, lighting, ANPR and full access management.
OpeningUp to 12m clear total
AccessANPR, intercom, key-pad, remote
PiersBrick, stone or rendered
When it fits
· Gated estate or equestrian property
· Multiple users / vehicles
· Full access-management system
§ 02What we work in
Six materials. One workshop.
Wrought iron
The traditional choice. Hand-forged bar stock, galvanised and powder-coated. Seventy-year life if maintained.
Mild steel
Faster to fabricate, lower cost, equally strong. Hot-dip galvanised before powder-coating.
English oak
Used as solid infill panels or frame members. Naturally weather-resistant, movement expected and designed for.
Iroko
African hardwood, naturally oily. Denser than oak — preferred for gates in exposed coastal positions.
Accoya
Modified radiata pine: dimensionally stable, guaranteed 50 years above ground. Our preferred timber for large gate leaves.
Aluminium
Light, low-maintenance and naturally corrosion-resistant — no galvanising needed. Used in three of our named collections, and available by special commission for a fully bespoke gate.
§ 03The finial library
Eight patterns, or bespoke.
Finials are cast from the originals in our collection, or modelled from your drawings. Custom patterns at no extra charge for orders over £12,000.
Ball
Fleur-de-lis
Arrow
Spear
Acorn
Finial ring
Gothic arch
Crown
§ 04The finish
Four-stage protection. Guaranteed five years.
01
Hot-dip galvanising
The bare steel is immersed in molten zinc at 450°C, forming a metallurgical bond. This is the base coat — not optional.
02
Sweep and etch
The galvanised surface is swept with a wire wheel then etched with phosphoric acid to create a key for the primer.
03
Epoxy primer
Two coats of two-pack epoxy, applied by brush. This bridges any pinholes in the galvanising and bonds the topcoat.
04
Powder topcoat
Polyester powder applied electrostatically in an oven at 200°C. Final colour. Available in all RAL shades; satin or matt.
§ 05Selected gates
Recent commissions.
◆ No. 001 · Knebworth
Twin-leaf iron, stone piers

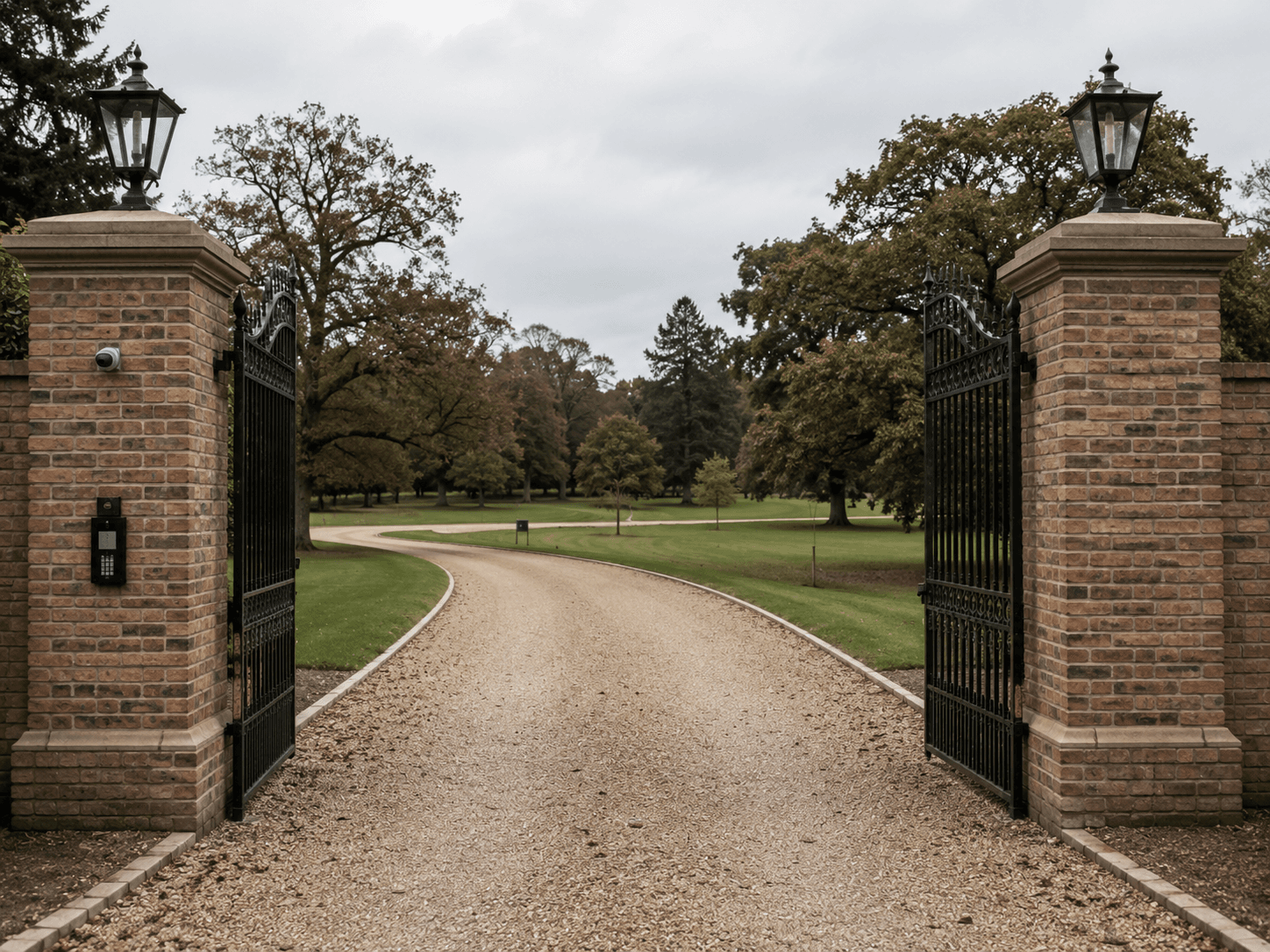

◆ No. 003 · Saffron Walden
Estate gates, brick piers
◆ No. 011 · Colchester
Edwardian replica, iron
